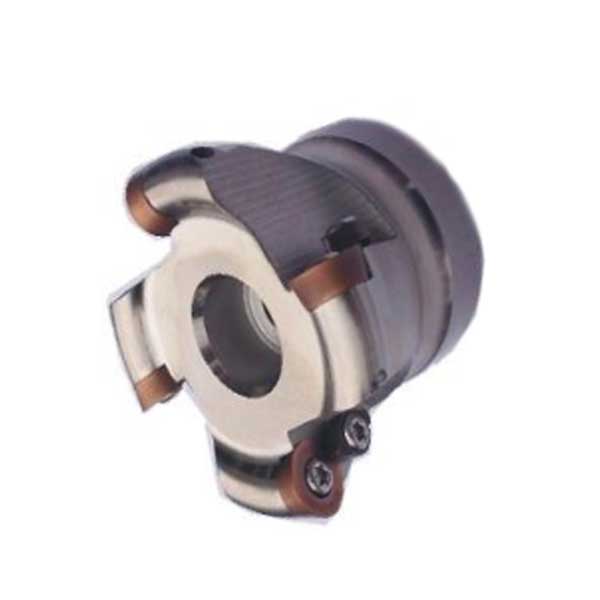

EMR/EMRW Face Milling Cutter
EMR/EMRW Face Milling Cutter
Product Details
specifications
| Product Model Face Milling Cutter |
Size | 🔪 Insert | 🔧 Plate | 🔧 Screw | 🔧 Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | d | H | W | T | a | |||||
| EMR-5R-50-22-4T | 50 | 22 | 50 | 10.4 | 6.3 | 5 | RPMW1003MO RPMT10T3MOE |
Y-SR | M4.0*9 | T15 |
| EMR-5R-63-22-4T | 63 | 22 | 50 | 10.4 | 6.3 | 5 | ||||
| EMR-5R-80-27-6T | 80 | 27 | 50 | 12.4 | 7 | 5 | ||||
| EMR-5R-100-32-6T | 100 | 32 | 50 | 14.4 | 7 | 5 | ||||
| EMR-5R-125-40-7T | 125 | 40 | 63 | 16.4 | 9 | 5 | RPMW1003MO RPMT10T3MOE |
Y-SR | M4.0*9 | T15 |
| EMR-5R-63-25.4-4T | 63 | 25.4 | 50 | 10 | 6 | 5 | ||||
| EMR-5R-80-25.4-6T | 80 | 25.4 | 50 | 10 | 6 | 5 | ||||
| EMR-5R-100-31.75-6T | 100 | 31.75 | 50 | 13 | 8 | 5 | ||||
| EMR-5R-160-40-8T | 160 | 40 | 63 | 16.4 | 9 | 5 | RPMW1003MO RPMT10T3MOE |
Y-SR | M4.0*9 | T15 |
| EMR-6R-50-22-4T | 50 | 22 | 50 | 10.4 | 6.3 | 6 | ||||
| EMR-6R-63-22-4T | 63 | 22 | 50 | 10.4 | 6.3 | 6 | ||||
| EMR-6R-80-27-6T | 80 | 27 | 50 | 12.4 | 7 | 6 | ||||
| EMR-6R-100-32-6T | 100 | 32 | 50 | 14.4 | 8 | 6 | RPMW1204MO RPMT1204MO |
Y-6R | M4.0*9 | T15 |
| EMR-6R-125-40-6T | 125 | 40 | 63 | 16.4 | 9 | 6 | ||||
| EMR-6R-160-40-8T | 160 | 40 | 63 | 16.4 | 9 | 6 | ||||
| EMR-6R-200-60-9T | 200 | 60 | 63 | 25.7 | 14 | 6 | ||||
| EMR-6R-63-25.4-4T | 63 | 25.4 | 50 | 10 | 6 | 6 | ||||
| EMR-6R-80-25.4-6T | 80 | 25.4 | 50 | 10 | 6 | 6 | ||||
| EMR-6R-100-31.75-6T | 100 | 31.75 | 50 | 13 | 8 | 6 | RPMW1204MO RPMT1204MO |
Y-6R | M4.0*9 | T15 |
Get customized solutions now
EMR/EMRW Face Milling Cutter with Flat Bottom and Circular Edge
The EMR/EMRW Face Milling Cutter with Flat Bottom and Circular Edge is a precision-engineered solution for CNC machining operations requiring high accuracy in face milling applications. Designed with advanced economic insert technology and optimized chip pocket design, this cutter provides exceptional rigidity and vibration resistance during high-speed machining, making it ideal for producing precise flat surfaces and circular edge features.
Technical Key Features
- Economic Insert Design: Utilizes 11° inserts for cost-effective machining with high applicability.
- Optimized Chip Flow: Specialized chip pocket design improves chip evacuation and prevents chip recutting.
- Taper Design: Advanced taper design provides excellent rigidity and stability during machining.
- Versatile Size Range: Available in multiple diameters from 50mm to 200mm, accommodating various face milling requirements.
- Dual Insert Compatibility: Supports RPMW1003MO and RPMT10T3MOE inserts for different application needs.
Material Application Range
This series excels in processing a wide range of materials:
- Steel (P): Carbon steel, alloy steel – optimized for face milling
- Stainless Steel (M): 304, 316 grades – enhanced heat dissipation design
- Cast Iron (K): Ductile and grey iron – high wear resistance configuration
Why Choose EMR/EMRW for Your CNC Operations?
In modern manufacturing environments, efficiency and precision are critical. The EMR/EMRW face milling cutter features advanced economic insert technology combined with optimized chip flow design for superior cutting performance. Its dual insert compatibility provides flexibility for different machining requirements while maintaining excellent surface finish quality and extended tool life.
