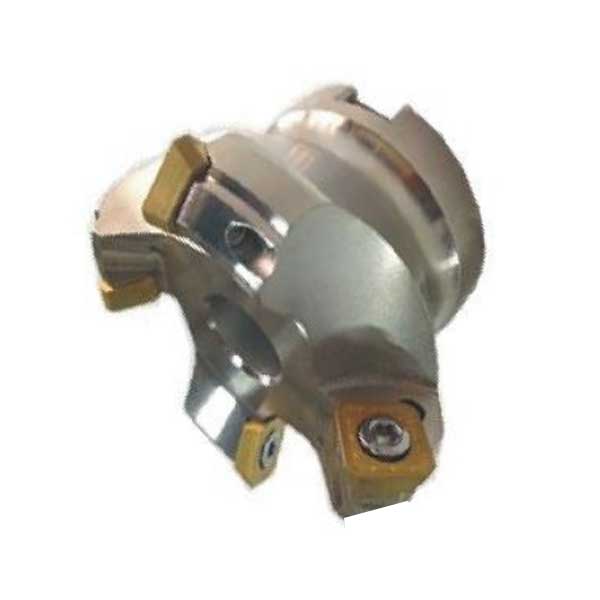

KM45 face milling cutter
High-performance KM-45° Face Milling Cutter with 45° angle design. Engineered for precision angled face milling, featuring wide material compatibility and optimized chip flow with SEHT1204 inserts.
| Specifications | Details |
|---|---|
| Body Material | Alloy Steel Forged |
| Compatible Insert | SEHT1204 Series |
| Insert Angle | 45° |
| Application | Angled Face Milling |
Product Details
specifications
| Product Model Face Milling Cutter |
Specifications | Size | 🔪 Insert | 🔧 Screw | 🔧 Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | H | W | T | a | ||||||
| KM12-50-22-4T | KM12-50-22-5T | 64 | 22 | 50 | 10.4 | 6.3 | SEHT1204 | M5*11 | T20 | |
| KM12-63-22-4T | KM12-63-22-5T | 77 | 22 | 50 | 10.4 | 6.3 | ||||
| KM12-80-27-5T | KM12-80-27-6T | 94 | 27 | 50 | 12.4 | 7 | ||||
| KM12-100-32-5T | KM12-100-32-6T | 114 | 32 | 50 | 14.4 | 8 | ||||
| KM12-125-40-6T | KM12-125-40-7T | 139 | 40 | 63 | 16.4 | 9 | ||||
| KM12-160-40-6T | KM12-160-40-7T | 174 | 40 | 63 | 16.4 | 9 | ||||
| KM12-200-60-8T | KM12-200-60-9T | 210 | 60 | 63 | 25.7 | 14 | ||||
| KM12-250-60-10T | KM12-250-60-11T | 260 | 60 | 63 | 25.7 | 14 | ||||
| KM12-63-25.4-4T | KM12-63-25.4-5T | 77 | 25.4 | 50 | 10 | 6 | ||||
| KM12-80-25.4-5T | KM12-80-25.4-6T | 94 | 25.4 | 50 | 10 | 6 | ||||
| KM12-100-31.75-5T | KM12-100-31.75-6T | 114 | 31.75 | 50 | 13 | 8 | SEHT1204 | M5*11 | T20 | |
Get customized solutions now
PRODUCT PREVIEW
KM-45° Face Milling Cutter
The KM-45° Face Milling Cutter is a precision-engineered solution for CNC machining operations requiring high accuracy in face milling applications with 45° angle cutting. Designed with advanced insert technology and optimized chip flow design, this cutter provides exceptional rigidity and vibration resistance during high-speed machining, making it ideal for producing precise angled surfaces and complex geometries.
Technical Key Features
- 45° Angle Design: Optimized for angled face milling with excellent surface finish quality.
- Wide Material Compatibility: Suitable for steel, cast iron, and aluminum materials.
- Optimized Chip Flow: Specialized chip pocket design improves chip evacuation and prevents chip recutting.
- Small Cutting Load: Engineered for reduced cutting forces and improved machining efficiency.
- Versatile Size Range: Available in multiple diameters from 64mm to 260mm, accommodating various face milling requirements.
Material Application Range
This series excels in processing a wide range of materials:
- Steel (P): Carbon steel, alloy steel – optimized for angled face milling
- Stainless Steel (M): 304, 316 grades – enhanced heat dissipation design
- Cast Iron (K): Ductile and grey iron – high wear resistance configuration
- Aluminum (A): Aluminum alloys – efficient cutting performance
Why Choose KM-45° for Your CNC Operations?
In modern manufacturing environments, efficiency and precision are critical. The KM-45° face milling cutter features advanced 45° angle design combined with optimized chip flow for superior cutting performance in angled face milling applications. Its wide material compatibility provides flexibility for different machining requirements while maintaining excellent surface finish quality and extended tool life.
