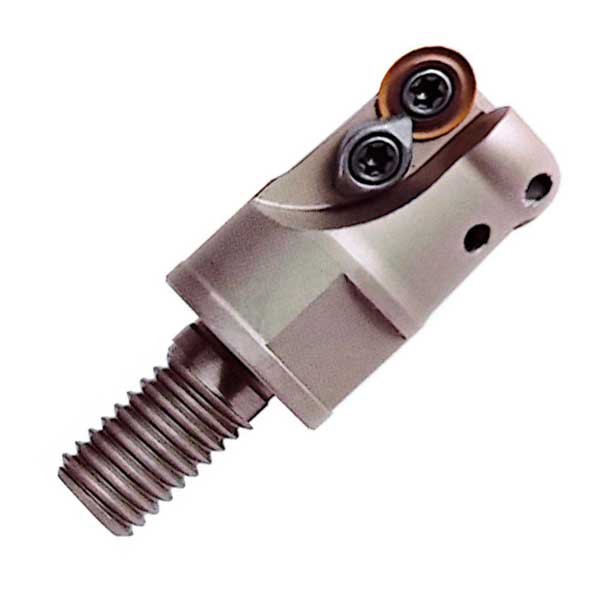

TRS screw-on Circular Insert Face Milling cutter
High-performance TRS Circular Insert Milling Head with locking tooth technology. Engineered for precision circular edge milling, featuring multi-insert compatibility with RDMT0802/RDMT10T3/RDMT1204 inserts.
| Specifications | Details |
|---|---|
| Body Material | Alloy Steel Forged |
| Compatible Insert | RDMT0802 / RDMT10T3 / RDMT1204 Series |
| Locking System | Advanced Tooth Locking |
| Application | Circular Edge Milling |
Product Details
specifications
| Product Model Circular Insert Milling Head |
Teeth | Size | 🔪 Insert | 🔧 Screw | 🔧 Wrench | |||
|---|---|---|---|---|---|---|---|---|
| D | d | L | M | |||||
| TRS-4R16-M8-2T | 2 | 16 | 8.5 | 25 | M8 | RDMT0802 | M3.0 | T8 |
| TRS-4R17-M8-2T | 2 | 17 | 8.5 | 25 | M8 | |||
| TRS-4R20-M10-2T | 2 | 20 | 10.5 | 30 | M10 | |||
| TRS-4R21-M10-2T | 2 | 21 | 10.5 | 30 | M10 | |||
| TRS-4R25-M12-3T | 3 | 25 | 12.5 | 35 | M12 | RDMT10T3 | M4.0 | T15 |
| TRS-4R26-M12-3T | 3 | 26 | 12.5 | 35 | M12 | |||
| TRS-5R25-M12-2T | 2 | 25 | 12.5 | 35 | M12 | |||
| TRS-5R26-M12-2T | 2 | 26 | 12.5 | 35 | M12 | |||
| TRS-5R30-M12-2T | 2 | 30 | 12.5 | 35 | M12 | |||
| TRS-5R32-M16-3T | 3 | 32 | 17 | 40 | M16 | RDMT10T3 | M4.0 | T15 |
| TRS-5R35-M16-3T | 3 | 35 | 17 | 40 | M16 | |||
| TRS-5R40-M16-3T | 3 | 40 | 17 | 40 | M16 | |||
| TRS-6R30-M16-2T | 2 | 30 | 12.5 | 35 | M16 | |||
| TRS-6R32-M16-2T | 2 | 32 | 12.5 | 35 | M16 | RDMT1204 | M4*10 | T15 |
| TRS-6R35-M16-3T | 3 | 35 | 17 | 40 | M16 | |||
| TRS-6R40-M16-4T | 4 | 40 | 17 | 40 | M16 | |||
Get customized solutions now
TRS Locking Tooth Circular Insert Milling Head
The TRS Locking Tooth Circular Insert Milling Head is a precision-engineered solution for CNC machining operations requiring high accuracy in circular edge milling applications. Designed with advanced locking tooth technology and circular insert design, this mill provides exceptional rigidity and vibration resistance during high-speed machining, making it ideal for producing precise circular edge features.
Technical Key Features
- Circular Insert Design: Optimized for smooth, continuous cutting edges with excellent surface finish quality.
- Advanced Locking Tooth Design: Innovative locking mechanism ensures secure insert retention and eliminates insert movement.
- Multi-Insert Compatibility: Supports RDMT0802, RDMT10T3, and RDMT1204 insert systems for versatile application.
- Versatile Size Range: Available in multiple diameters from 16mm to 40mm, accommodating various machining requirements.
Material Application Range
This series excels in processing a wide range of materials:
- Steel (P): Carbon steel, alloy steel – optimized for circular edge milling
- Stainless Steel (M): 304, 316 grades – enhanced heat dissipation design
- Cast Iron (K): Ductile and grey iron – high wear resistance configuration
Why Choose TRS for Your CNC Operations?
In modern manufacturing environments, efficiency and precision are critical. The TRS series features advanced locking technology combined with circular insert design for superior cutting performance. Its multi-insert compatibility provides flexibility for different machining requirements while maintaining excellent surface finish quality and extended tool life.
